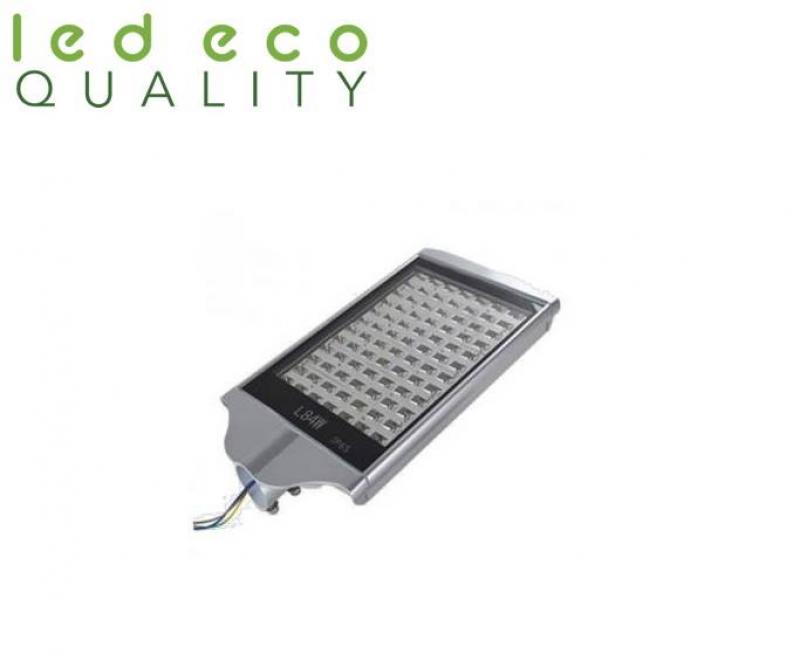

84w led street light Clave# LEQ-MSL-K84 Marca: Led Eco Quality Replacement 250W High Pressure Sodium Lamp LED Light Source CREE LED LED Quantity 84pcs LED Working Current 400 mA Lamp Rated Total Power 115W Power Efficiency > 90% LED Luminous Efficiency 100-122lm/w Lamp Rated Total Luminous Flux > 8100lm Lamp Rated Luminous Efficiency 80lm/w lllumination and Effective Area lllumination Effective Area Height 6M 66 lux 24X6M Height 8M 37 lux 34X8M Height 10M 24 lux 40X10M Height 12M 16 lux 50X12M Color Rendering Index(CRI) Ra>75 Color Temperature(Color Temperture) Cool white: 5000-6300K Pure white: 3700-5000K Warm white: 2700-3300K Beam Angle Horizontal Axis:60° Vertical Axis:130° Light Distribution Curve(Beam Pattern) Asymmetric (Bat Wing) / Rectangular Beam Input Voltage AC 90-305V Frequency Range 47-63Hz Power Factor(PF) ≥ 0.95 Total Harmonic Distortion(THD) < 15% Storage Temperature －40℃--+80℃ Working Environment －40℃--+50℃; 10%-95%RH Junction Temperature(Tj) 60℃±10%(ta=25℃) Light Body and Lampshade Material Aluminum Alloy Working Lifetime > 50, 000hrs IP Rating IP66 Net Weight 13.0kg Gross Weight 15.1kg
|
|
|
|||||||||||||||
|
570(L)×320(W)×80(H)mm
|
|||||||||||||||
