Equivalent
150W High Pressure Sodium Lamp
LED Light Source
70× 1W CREE LED
LED Luminous Efficiency
107-122 lm/w
Lamp Rated Total Power
80W
Power Efficiency
> 88%
Lamp Rated Luminous Flux
> 7100lm
Lamp Rated Luminous Efficiency
> 85 lm/W
Average lllumination and Effective Area
6M Height
20m×8m ≥34LUX
8M Height
26m×10m ≥22LUX
10M Height
33m×13m ≥15LUX
Color Rendering Index(CRI)
Ra>75
Color Temperature(Color Temperture)
Cool white: 5000-6500K
Pure white: 4000-5000K
Warm white: 2700-3500K
Beam Angle
Horizontal Axis:120° /140°;
Vertical Axis:60° /68°
Light Distribution Curve(Beam Pattern)
Asymmetric (Bat Wing)/Rectangular Beam
Input Voltage
AC 85-264V, 277V ; DC 10.8-26V
Frequency Range
47-63Hz
Power Factor(PF)
> 0.98
Total Harmonic Distortion(THD)
< 15%
Storage Temperature
-40℃--+80℃
Working Environment
-40℃--+50℃ ;10%-95%RH
Junction Temperature(Tj)
60℃±10%(ta=25℃)
Light Body and Lampshade Material
Aluminum Alloy and PC
Working Lifetime
> 50, 000hrs
IP Rating
IP66
Net Weight
7.9kg
Gross Weight
17KG/2pcs
Precio regular:$510.00 $440.00
Medidas
Características
COMPARTIR:
570×320×80

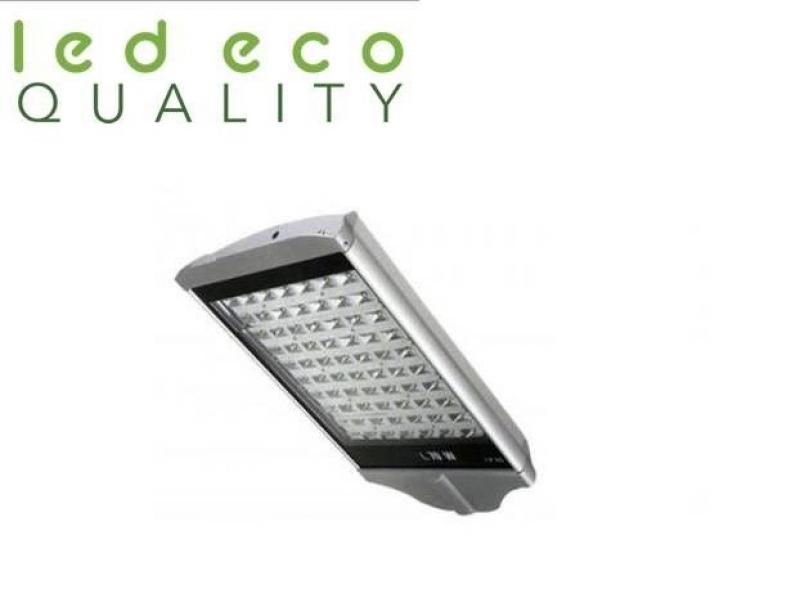

Model Name: 70w street light led
Model No.: LEQ-MSL-K70
Power consumption: 70W
Luminous Flux: 7000lm
Life Span: 50,000Hours
IP Rating.: IP65
Certificates: CE, RoHS, UL, PSE, etc.
Warranty: 3 years
