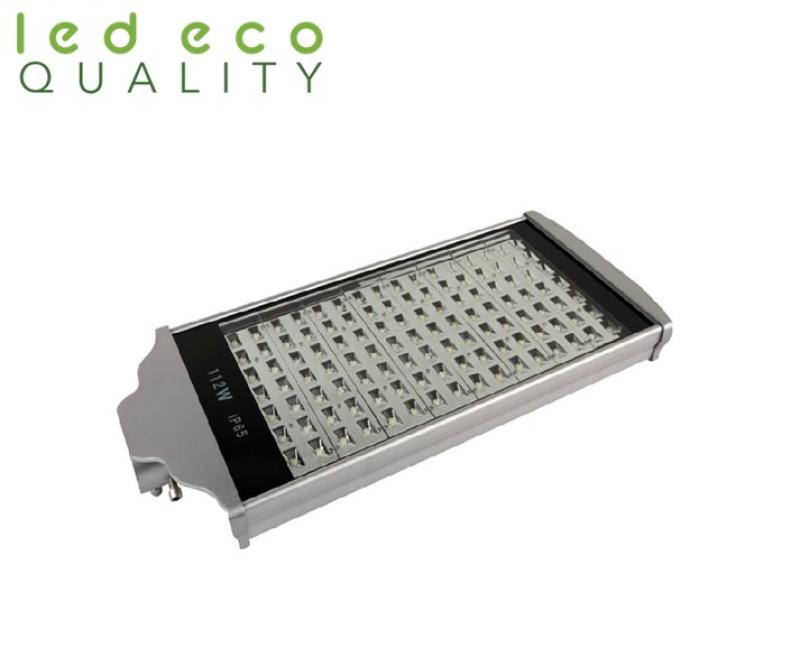

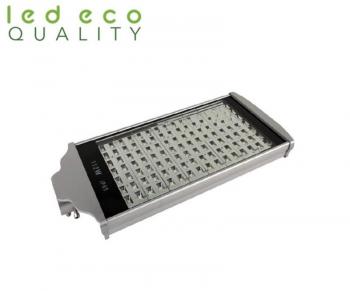

112w led street light Clave# LEQ-MSL-K112 Marca: Led Eco Quality Model No. LEQ-SL-K112 Replacement 400W High Pressure Sodium Lamp LED Light Source Bridgelux LED LED Quantity 112 pcs LED Working Current 400 mA Lamp Rated Total Power 160W Power Efficiency > 90% LED Luminous Efficiency 100-122lm/w Lamp Rated Total Luminous Flux > 11, 000lm Lamp Rated Luminous Efficiency 85lm/w lllumination and Effective Area lllumination Effective Area Height 6M 83 lux 24X6M Height 8M 47 lux 34X8M Height 10M 30 lux 40X10M Height 12M 20 lux 50X12M Color Rendering Index(CRI) Ra>75 Color Temperature(Color Temperture) Cool white: 5000-6300K Pure white: 3700-5000K Warm white: 2700-3300K Beam Angle Horizontal Axis:60° Vertical Axis:130° Light Distribution Curve(Beam Pattern) Asymmetric (Bat Wing) / Rectangular Beam Input Voltage AC 90-305V Frequency Range 47-63Hz Power Factor(PF) ≥ 0.95 Total Harmonic Distortion(THD) < 15% Storage Temperature －40℃--+80℃ Working Environment －40℃--+50℃; 10%-95%RH Junction Temperature(Tj) 60℃±10%(ta=25℃) Light Body and Lampshade Material Aluminum Alloy Working Lifetime > 50, 000hrs IP Rating IP66 Net Weight 10.7kg Gross Weight 11.8kg
|
|
|
|||||||||||||||
|
700(L)×320(W)×80(H)mm
|
|||||||||||||||
